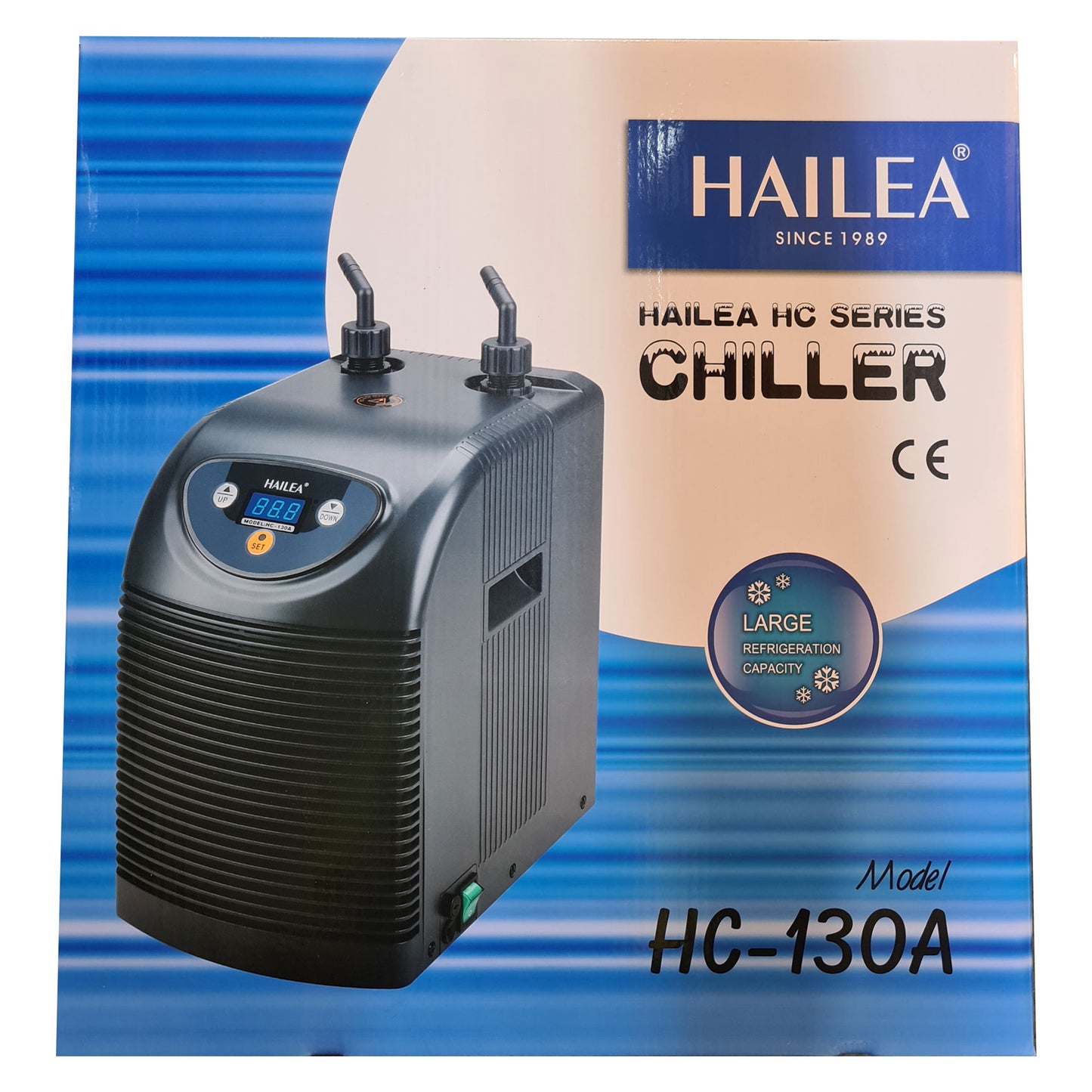

Hailea Water Chiller HC-130A

The cooling units from Hailea have been used in trusted water chillers from other manufacturers for over 15 years. The new heat exchangers of the Ultra series are made from titanium. Therefore, the chillers are perfect for water cooling systems.

Another positive aspect about the Hailea units is the low noise emission. Furthermore, thanks to its affordable pricing units from Hailea are perfect if you want an option that doesn't break your budget either!

• Hailea HC chillers have strong metal chassis with a housing of contemporary design, ensuring the chiller does not look out of place in any surroundings and as with other cooling units, our chillers-the HC series use the environmental friendly refrigerant R134a.
• Lower noise design, whilst the digital temperature controller ensures that the selected temperature is maintained.
• The rate of flow is decided according to the max jet of the pump (immersible power filter) and the circulation equipment.

How Hailea Nutrient Chillers Work

To get the chiller up running, you need flexible pipe, water pumps that are perfectly matched to each chiller unit, and three hose clips to keep everything secured in place, eliminating leaks.

How to Use the Hailea Nutrient Chiller

Setting up chiller kits is quick and easy. The diagram to the right gives you an overview of how they're constructed.

You'll need to connect the pump to the chiller's inlet using a length of pipe and connect another length of pipe to the chiller's outlet. Be sure to secure everything in place with the supplied hose clips.

The chiller should be cleaned after each crop to remove any mineral deposits and limescale. Just fill the chiller with clear pickling vinegar, leave for 24 hours, and then flush it with water. Ensure that you also set up an air circulator fan near the chiller to avoid any heat build-up.

Specifications:

• Model: HC-130A
• Power: 1/15HP
• Voltage: 220~240V
• Frequency: 50Hz
• Working Current: 0.8A
• Water Temperature Before Refrigeration: 28 Degrees Celcius
• Refrigeration Time: 20h
• Water Temperature After Refrigeration (Water Refrigerated 130L): 16 Degrees Celcius
• Water Temperature After Refrigeration (Water Refrigerated 260L): 22 Degrees Celcius
• Rate of Flow: 200 - 100L/h
• Water Inlet & Outlet Adaptor: 13MM
• Refrigerant: R134a
• Refrigerant Weight: 120g
• Weight: 9.5kg
• Size: 338×218×325mm
